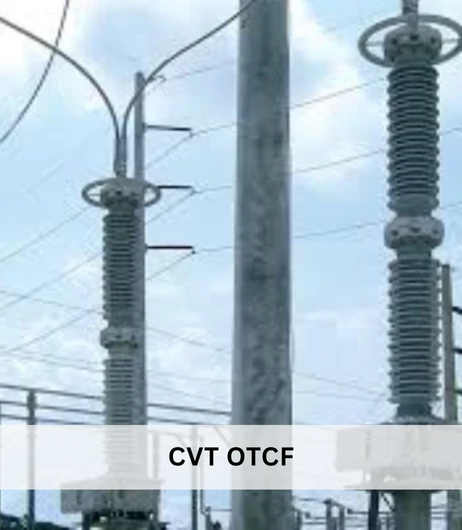

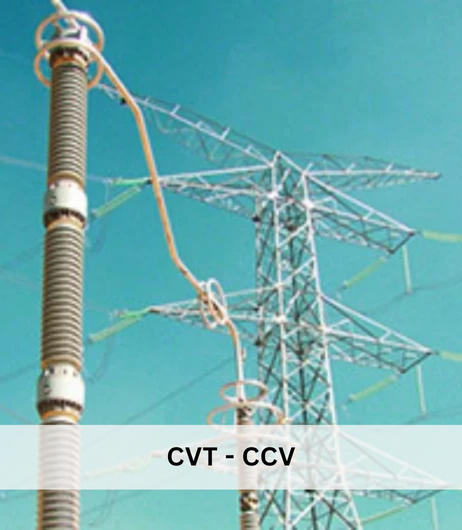

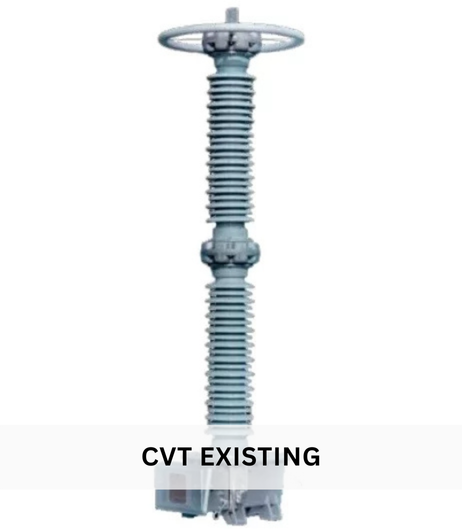

Capacitive Voltage Transformer (CVT)
1. Voltage Class: 72.5 to 800KV
2. Cn from 1750 to 3,500 pF.
3. Thermal Capacity upto 1500VA
Application: Industries, Solar, Wind, Utilities Switchyard

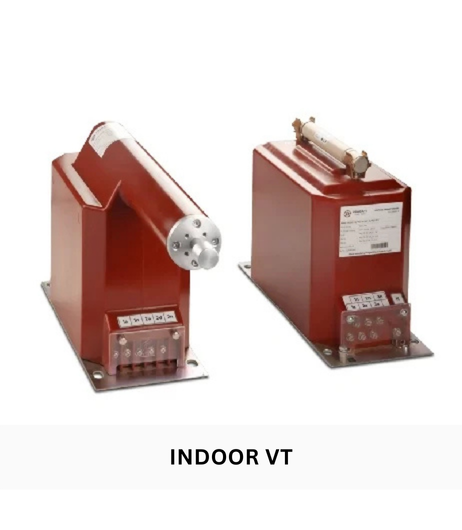

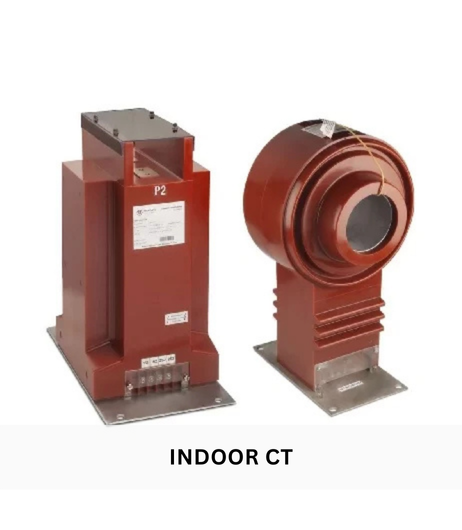

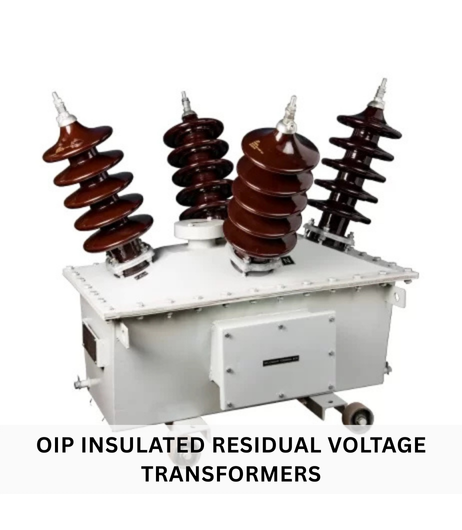

Instrument Transformer (CT/PT)
Medium & High Voltage Indoor and Outdoor Product
1. Insulation Level 3.3KV to 800KV
2. Current Rating 50A to 3150A STC Rating 21.5KA to 40KA
3. Accuracy Class: Upto 0.2s
2. Current Rating 50A to 3150A STC Rating 21.5KA to 40KA
3. Accuracy Class: Upto 0.2s
Low Voltage Product
1. Insulation level 0.66 to 3KV
2. Rated primary current (Ipn) upto 5000A
3. Rated Secondary current (Isn) 5A or 1A
2. Rated primary current (Ipn) upto 5000A
3. Rated Secondary current (Isn) 5A or 1A
Application: Industries, Solar, Wind, Utilities Switchyard.

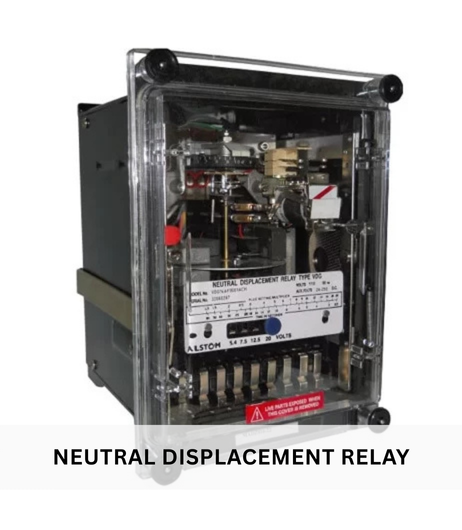

Protective Relays

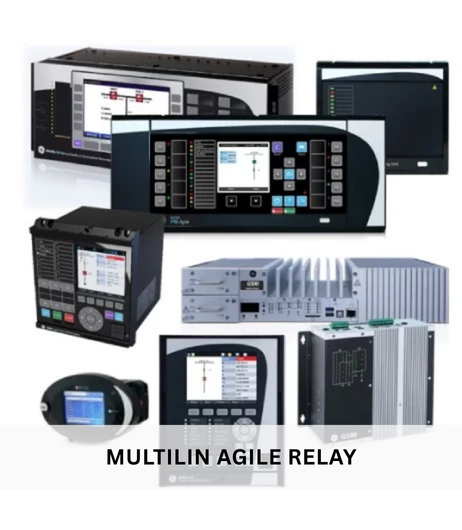

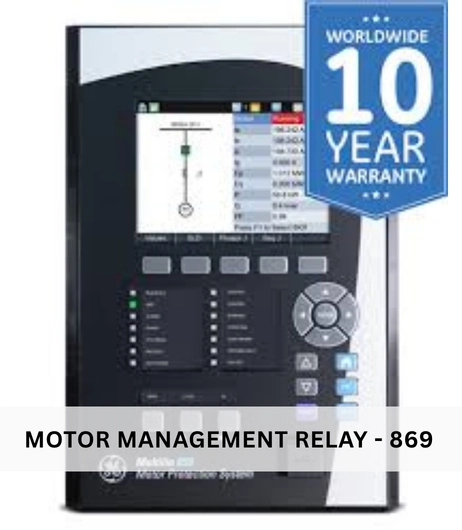

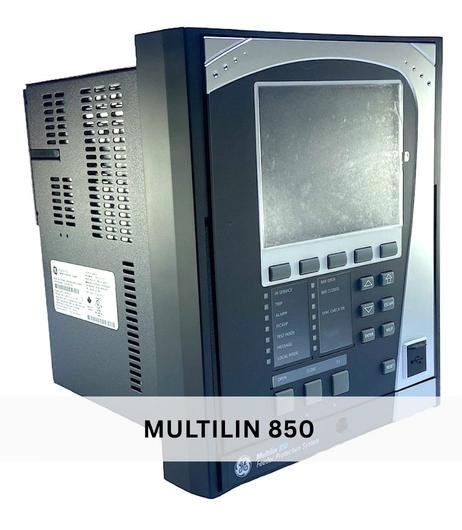

1. Advance Multilin Range of Relays with in-built ESA

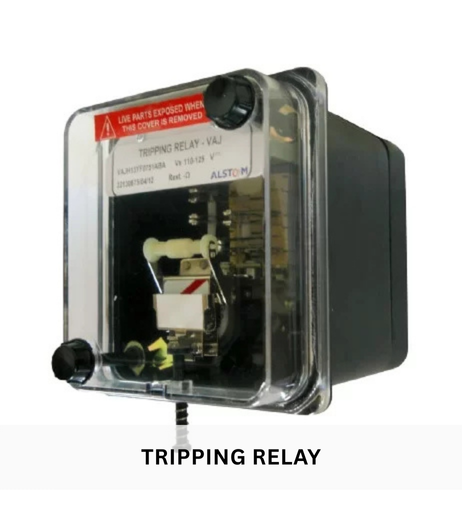

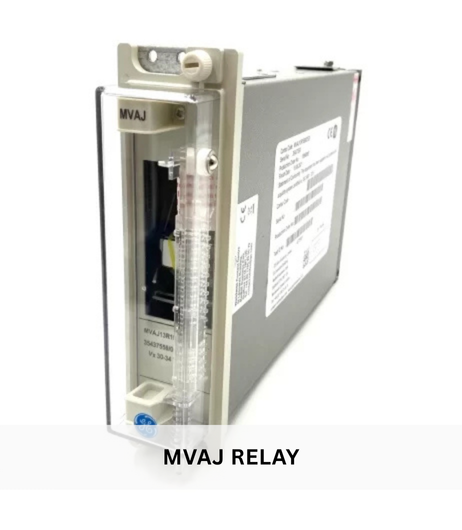

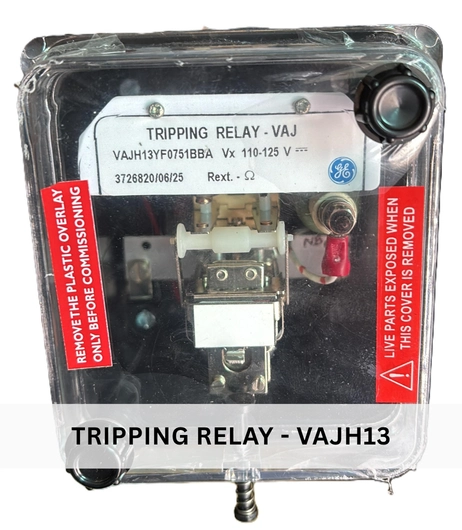

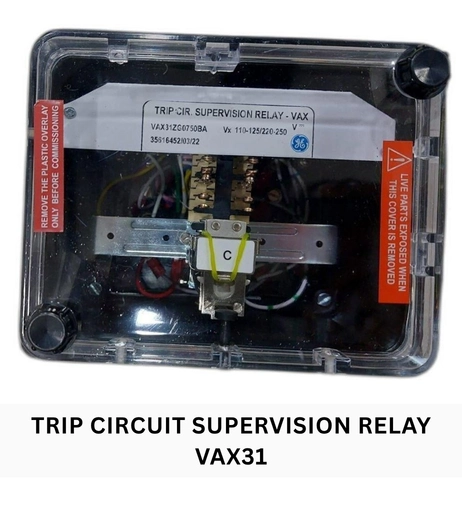

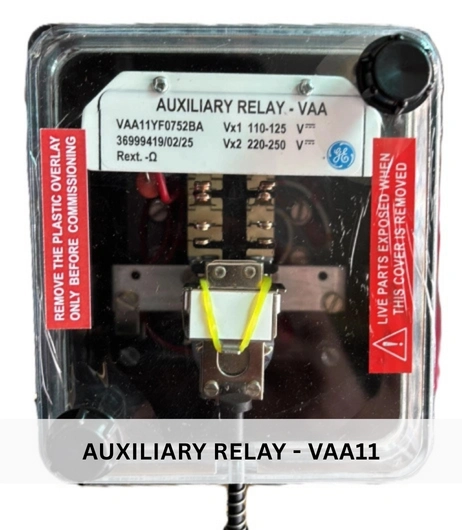

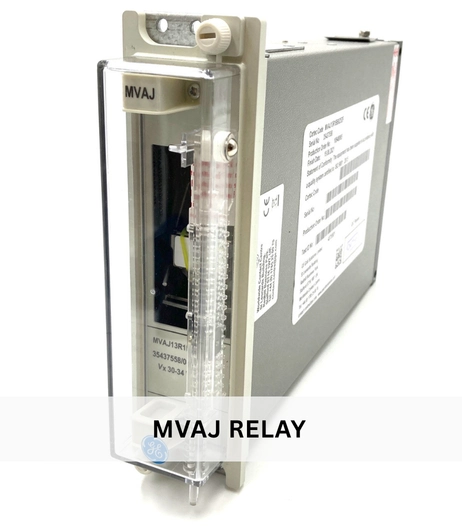

2. Electromechanicals Relays like VAA33, VAJH13, VAX31 (Ready Stock)
3. Numericals Relays with Coloured display

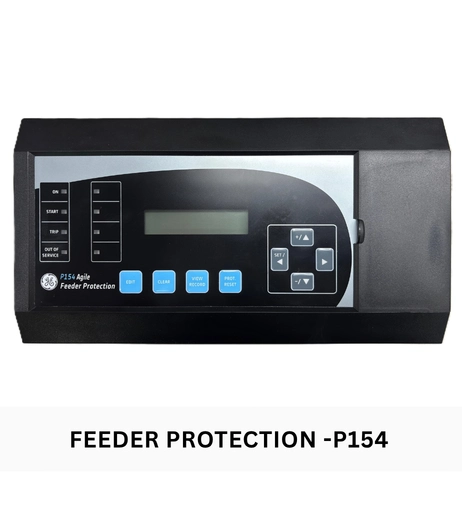

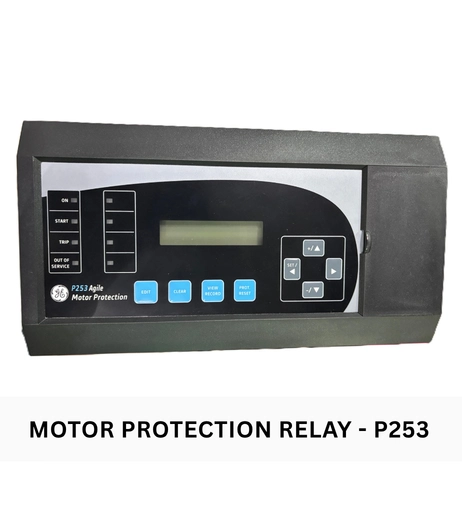

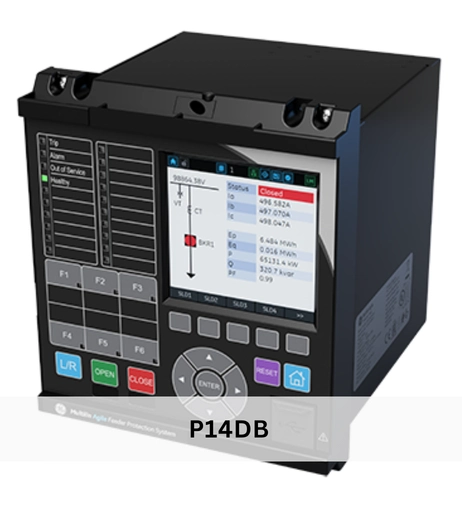

4. Micom & AGIlLE Relays with compact FORM Factor

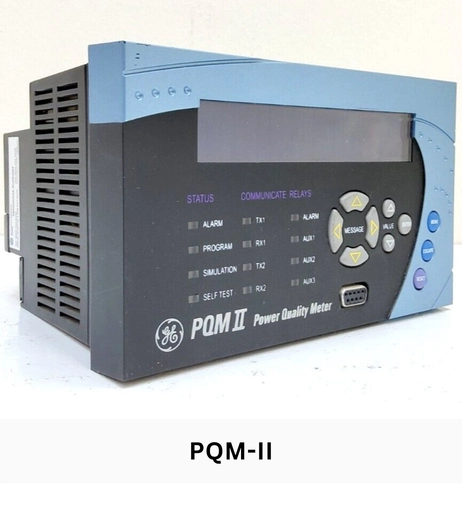

5. PQ ENERGY Meter with 0.2s class of accuracy
Application: Feeder, Capacitor, Motor, Transformer, Generators, Line Cables, Transmission Lines Distribution Lines etc

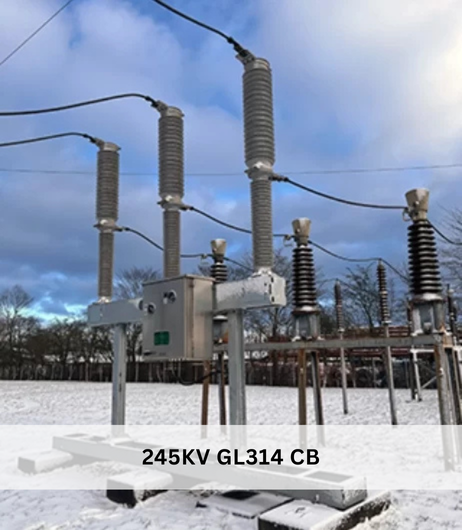

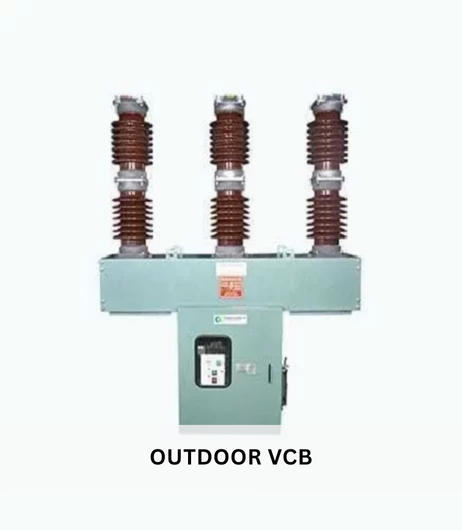

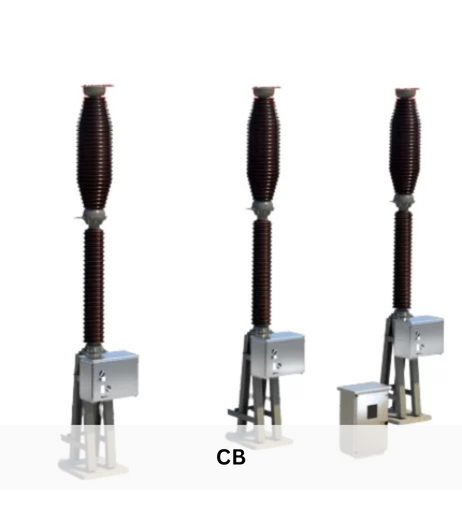

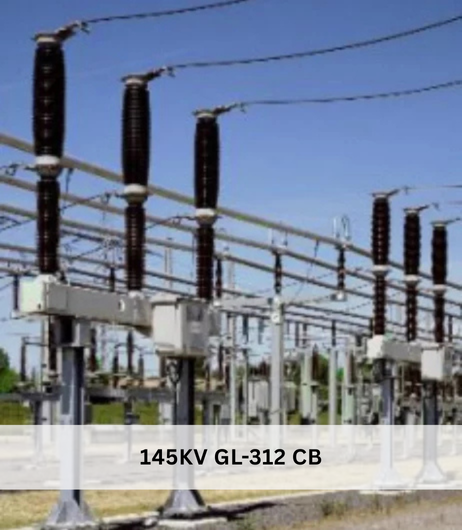

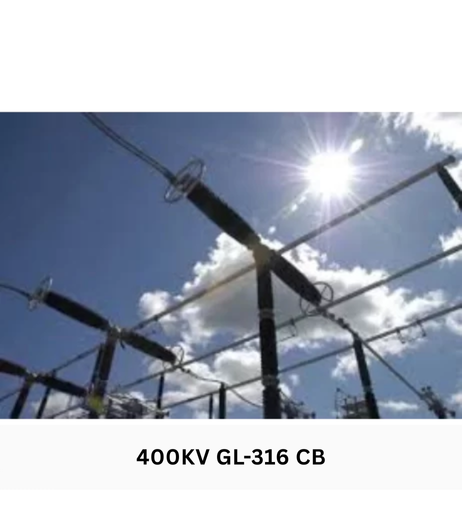

Circuit Breakers
1. Type VCB || SF6 || G3 (green gas)
2. Voltage range from 303KV to 800KV
3. Current Rating 800A- 4000A
4. STC Ratio 25KA to 50KA
2. Voltage range from 303KV to 800KV
3. Current Rating 800A- 4000A
4. STC Ratio 25KA to 50KA
Application: Industries, Solar, Wind, Utilities switchyard

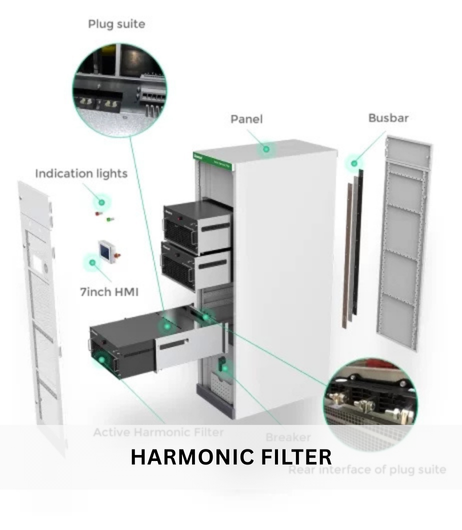

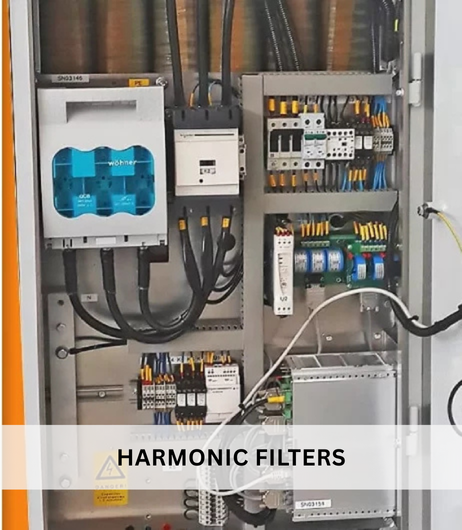

Harmonic Filters
1. Active/Passive Harmonic filter
2. Reducing or eliminating expensive utilities penalties for low power factor & harmonics
3. Reducing power losses in cables, transformer & other associated equipment
4. Increasing power transmission capacity of cables
5. Increasing available transformer capacity, improving voltage stabilization in long cables
6. Vast range of AHF – 10A, 15A, 25A, 35A, 50A, 60A, 100A, 150A, 300A
7. Modular design, compact, and occupy less space
8. Products are with 3 level IGBT Topology – Less watt loss (Less power consumption)
9. Faster response time – <50 microseconds
10. Higher Lifetime – MTBF up to 100000 Hours

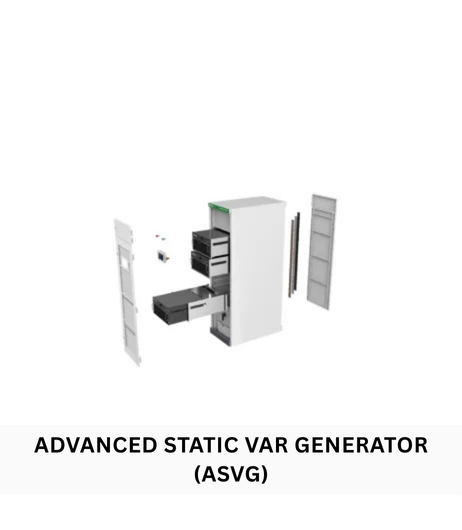

10. STATIC VAR GENERATOR (SVG) is also available
2. Reducing or eliminating expensive utilities penalties for low power factor & harmonics
3. Reducing power losses in cables, transformer & other associated equipment
4. Increasing power transmission capacity of cables
5. Increasing available transformer capacity, improving voltage stabilization in long cables
6. Vast range of AHF – 10A, 15A, 25A, 35A, 50A, 60A, 100A, 150A, 300A
7. Modular design, compact, and occupy less space
8. Products are with 3 level IGBT Topology – Less watt loss (Less power consumption)
9. Faster response time – <50 microseconds
10. Higher Lifetime – MTBF up to 100000 Hours
10. STATIC VAR GENERATOR (SVG) is also available
#1 in INDIA
Also Available at 800V System Voltage
Also Available at 800V System Voltage

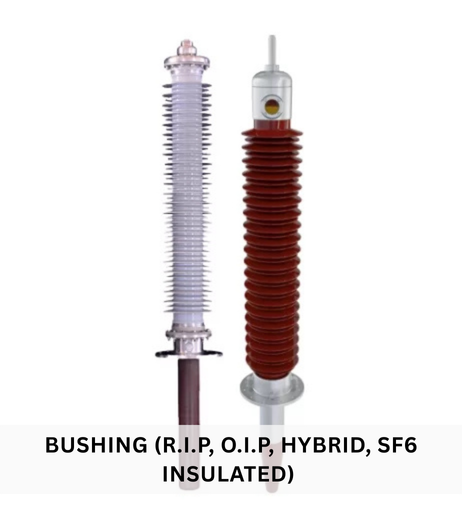

Bushing (R.I.P, O.I.P, Hybrid, SF6 Insulated)
1. Voltage Range from 33KV to 800KV
2. Current Rating from 600A to 2500A
| R.I.P Resin Impregnated Paper | • Up to 550 kV • Power transformers (oil-to-air, oil-to-oil, oil-to-SF6) • Through-wall applications • AC Generators |
|---|---|
| O.I.P Oil Impregnated Paper | • Up to 1200 kV • Power transformers (oil-to-air, oil-to-oil, oil-to-SF6) • Through-wall applications |
| Hybrid | • DC converter bushing up to 800KVDC • Based on two technologies: OIP+SF6 or RIP+SF6 |
| SF6 insulated | • Up to 800 kV GIS, GIL and dead tank (air-to-SF6) • Through-wall applications • Design parts patented |
Power Transformer | Through wall application
Isolator Cum Disconnectors
1. Voltage Class rating 12KV to 420KV
2. Current Rating from 200 to 3150Amps
3. Short-time current rating 16KA to 63KA
2. Current Rating from 200 to 3150Amps
3. Short-time current rating 16KA to 63KA
Application: Industries, Solar, Wind, Utilities switchyard

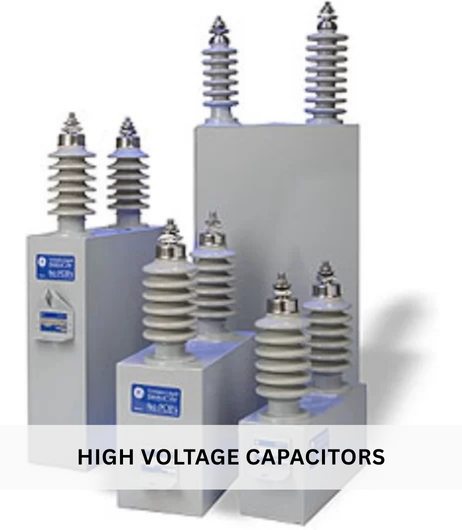

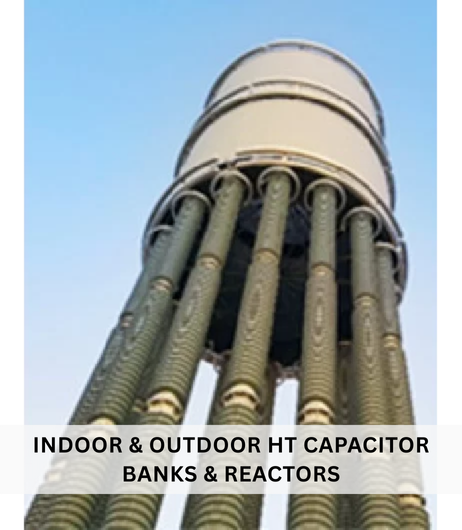

Indoor & Outdoor HT Capacitor Banks & Reactors
1. Voltage class ranging from 3.3KV to 400KV
2. Fixed type Capacitor bank – Structure Mounted
3. Automatic Power Factor Control Panels (APFC)
2. Fixed type Capacitor bank – Structure Mounted
3. Automatic Power Factor Control Panels (APFC)
Application: Industries, Solar, Wind, Utilities Switchyard

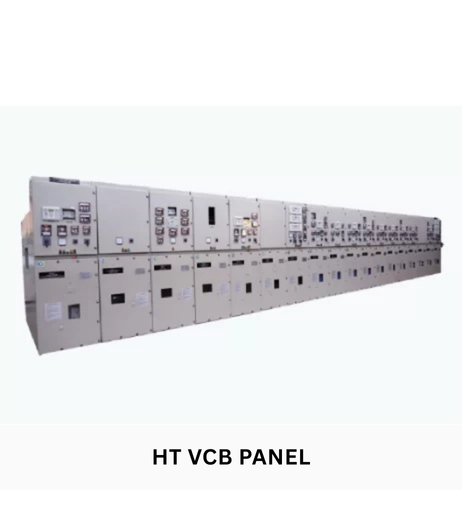

HT VCB Panels
1. Voltage class ranging from 3.3KV to 36KV
2. Current rating ranging from 800A to 3150A
3. STC Rating ranging from 20KA/3 Sec to 40KA/3 Sec
2. Current rating ranging from 800A to 3150A
3. STC Rating ranging from 20KA/3 Sec to 40KA/3 Sec
Application: Industries, Solar, Wind, Banks, Data Centre, Hospitals, Schools, Telecommunication Center, Commercials, Stadium High-rise Buildings, Malls Ect

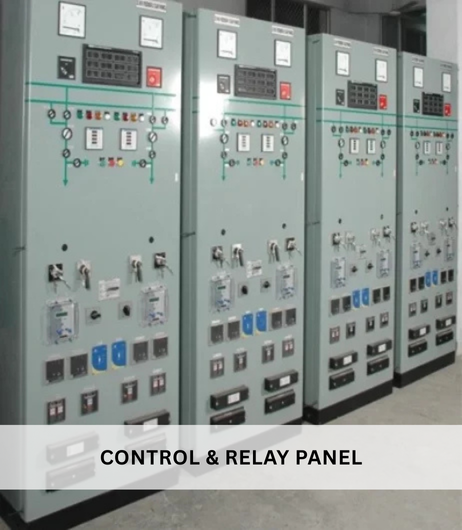

Control & Relay Panel
1. Complete with Main & Backup Protection
2. Incorporating Distance protection for Line panels
3. Incorporating Differential product for Transformer Feeders
4. Complete with SLD, Annunciator & customized as per customer requirement.
5. Suitable for Control & monitoring of 11KV to 400KV CB’s
2. Incorporating Distance protection for Line panels
3. Incorporating Differential product for Transformer Feeders
4. Complete with SLD, Annunciator & customized as per customer requirement.
5. Suitable for Control & monitoring of 11KV to 400KV CB’s

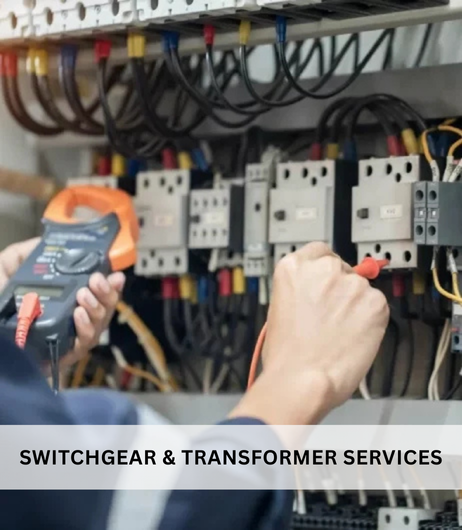

Switchgear & Transformer Services
1. Health check-up & O/H of Transformer (>50MVA)
2. Supply & Installation of spares like gasket, Air cell, Valves etc.
3. Complete o/H of 132 to 800KV CBs Pole & Mechanisms
4. Supply & fitting of spares for CBs Pole & Mechanisms
5. Relay Retrofitting
2. Supply & Installation of spares like gasket, Air cell, Valves etc.
3. Complete o/H of 132 to 800KV CBs Pole & Mechanisms
4. Supply & fitting of spares for CBs Pole & Mechanisms
5. Relay Retrofitting

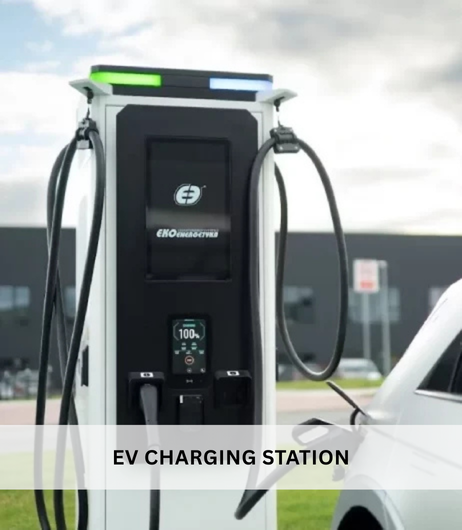

EV Charging Station
1. Rating ranging from 4KW to 200KW & more
2. Fast DC Electric Vehicle Charging Station
3. AC / DC Wall Box
2. Fast DC Electric Vehicle Charging Station
3. AC / DC Wall Box
Application: Rolling Mills, CPPs, Cement Plants, Steel Plants, Chemical Industries, Bank & Data Center, Hospitals & Schools, Commercial Malls & Hotels, Stadium & High Rise Building etc.
Industrial lED Lighting Product Solution
1. All types of Industrial lights FLP & Non-FLP Types
2. Rugged & Tested
3. 50W to 1000W
2. Rugged & Tested
3. 50W to 1000W
Application: Street Light, High Bay, Low Bay, Recessed Troffer, Linear Strip, Wellglass, Tube Light, Flood Light, Clean room fitting etc.
Dissolve Gas Analyser (DGA)
1. All types of Industrial lights FLP & Non-FLP Types
2. Rugged & Tested
3. 50W to 1000W
2. Rugged & Tested
3. 50W to 1000W
Application: Street Light, High Bay, Low Bay, Recessed Troffer, Linear Strip, Wellglass, Tube Light, Flood Light, Clean room fitting etc.
